200*50mm 3D Curved Wire Mesh Fence Panels For Road And Transit , Longlife

Hebei Qijie Wire Mesh MFG Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

200*50mm 3D Curved Wire Mesh Fence Panels For Road And Transit , Longlife

Brand Name : QiJie

Model Number : SGS2019034

Certification : Certification ISO2019034

Place of Origin : HeBei,China

MOQ : 50 Set/Sets

Price : Discuss

Supply Ability : 20000 Set/Sets per Month

Delivery Time : within 15-30 days

Packaging Details : Packed in plastic film+wooden/metal pallet,or as customer's request

Payment Terms : 30%TT

Application : Fence Mesh

Material : Low-Carbon Iron Wire

Surface treatment : Hot Dipped Galvanized

Color : RAL Colors

Wire Gauge : 4.0mm-6.0mm

Aperture : 200*50mm

Hole Shape : Rectangle

Type : Welded Mesh

Contact Now

200*50mm Hot Dipped Galvanized 3D curved Wire Mesh Fence for Road and Transit

Prdocuct description
White Mesh Fence is one of the most important ways to keep your home safe and secured from all forms of attacks by armed robbers and so on. It is very affordable and inexpensive that is why we see most homes using wire fencing for their walls and also very durable and easy to make and fix on fences.
Specifications

Wire Diameter(mm) 3.00-8.00
Panel Height(mm) 830, 1230, 1500, 1530, 1700, 1730, 1800, 1830, 1900, 2000, 2030, 2230, 2400, 2430, etc.
Panel Width(mm) 2000, 2250, 2500, 2900, etc.
Hole Size(mm) 50*50, 50*100, 50*150, 50*200, 55*100, 55*200, 60*150, 65*100, 65*200, 75*150
Post Style square post, round post, rectangle post, peach post, etc.

200*50mm 3D Curved Wire Mesh Fence Panels For Road And Transit , Longlife

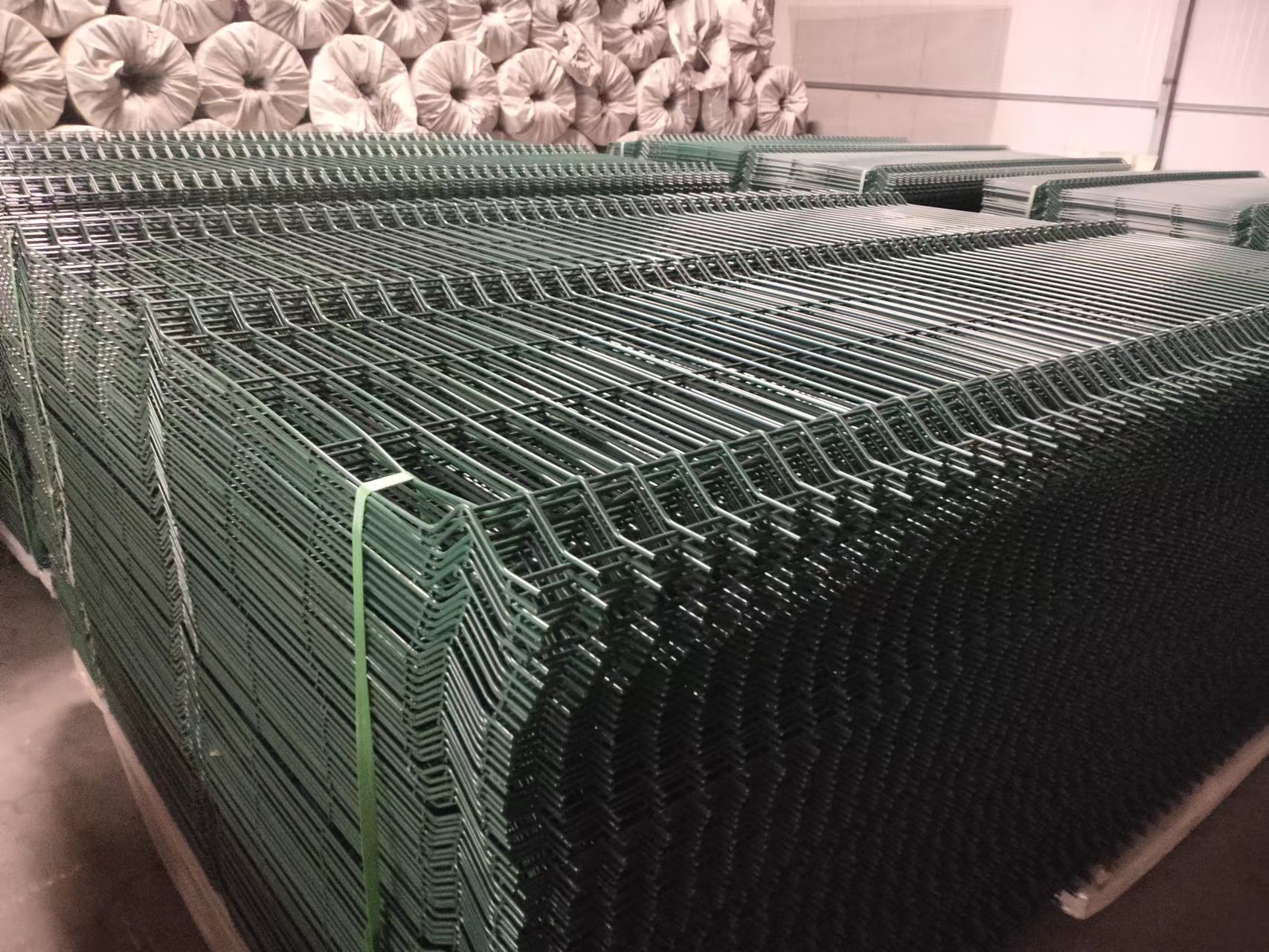

Detailed images

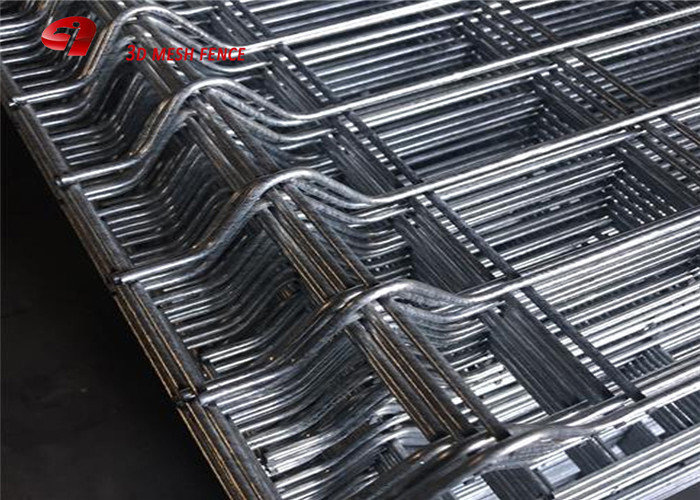

Extraordinary and fashionable design,convenient installation.The fence panels are jointed with the post without any clamps,and it is easy and convenient.

200*50mm 3D Curved Wire Mesh Fence Panels For Road And Transit , Longlife

Popular Specification

Wire Dia. Mesh Size Panel Width Panel Height Fold No. Post's Height Post Model
FixⅠ FixⅡ FixⅢ

4.0mm

4.5mm

5.0mm

5.5mm

6.0mm

200*50mm

200*55mm

200*60mm

200*65mm

2.0m

2.255m

2.5m

3.0m

0.635m 2 0.9 0.7 1.0

XLFP-01

"H"Shape Post

XLFP-02

"V"Shape Post

XLFP-05

Peach Shape Post

0.835m 2 1.2 0.9 1.2
1.035m 2 1.4 1.1 1.4
1.235m 2 1.6 1.3 1.6
1.435m 2 1.8 1.5 -
1.535m 3 1.9 1.6 -
1.635m 3 2.0 1.7 -
1.735m 3 2.2 1.8 -
1.835m 3 2.3 1.9 -
1.935m 3 2.4 2.0 -
2.035m 4 2.5 2.1 -
2.235m 4 2.8 2.3 -
2.435m 4 3.0 2.5 -

Surface Treatment

Surface Treatment Min. Max.
Hot Dipped Galvanized 20g/m² 600g/m²
Powders Sprayed Coating 35g/m² 700g/m²
PVC/PE Dipped Coating 400microns 600microns

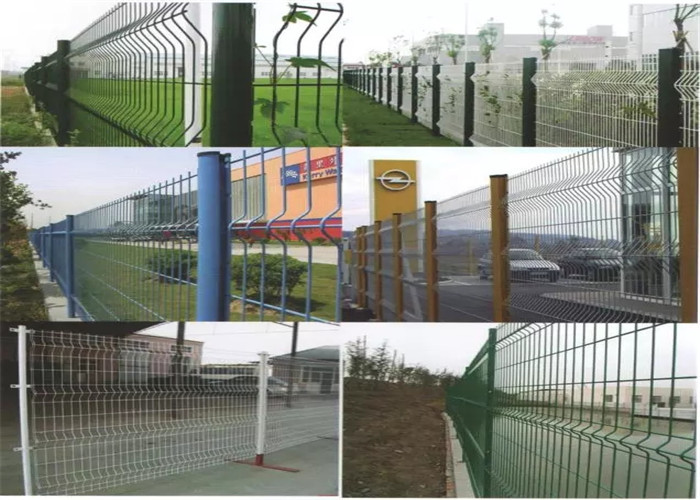

Application
  • Road and Transit(Highway,Railway,Road,City Transit)
  • Science&Industry Zone(Factory,Industry Zone,Sightseeing Zone,New Pattern Farm)
  • Private Grounds(Courtyard,Villadom)
  • Public Grounds(Park,Zoo,Train or Bus Station,Lawn)
  • Commercial Grounds(Corporation,Hotel,Supermarket)

200*50mm 3D Curved Wire Mesh Fence Panels For Road And Transit , Longlife

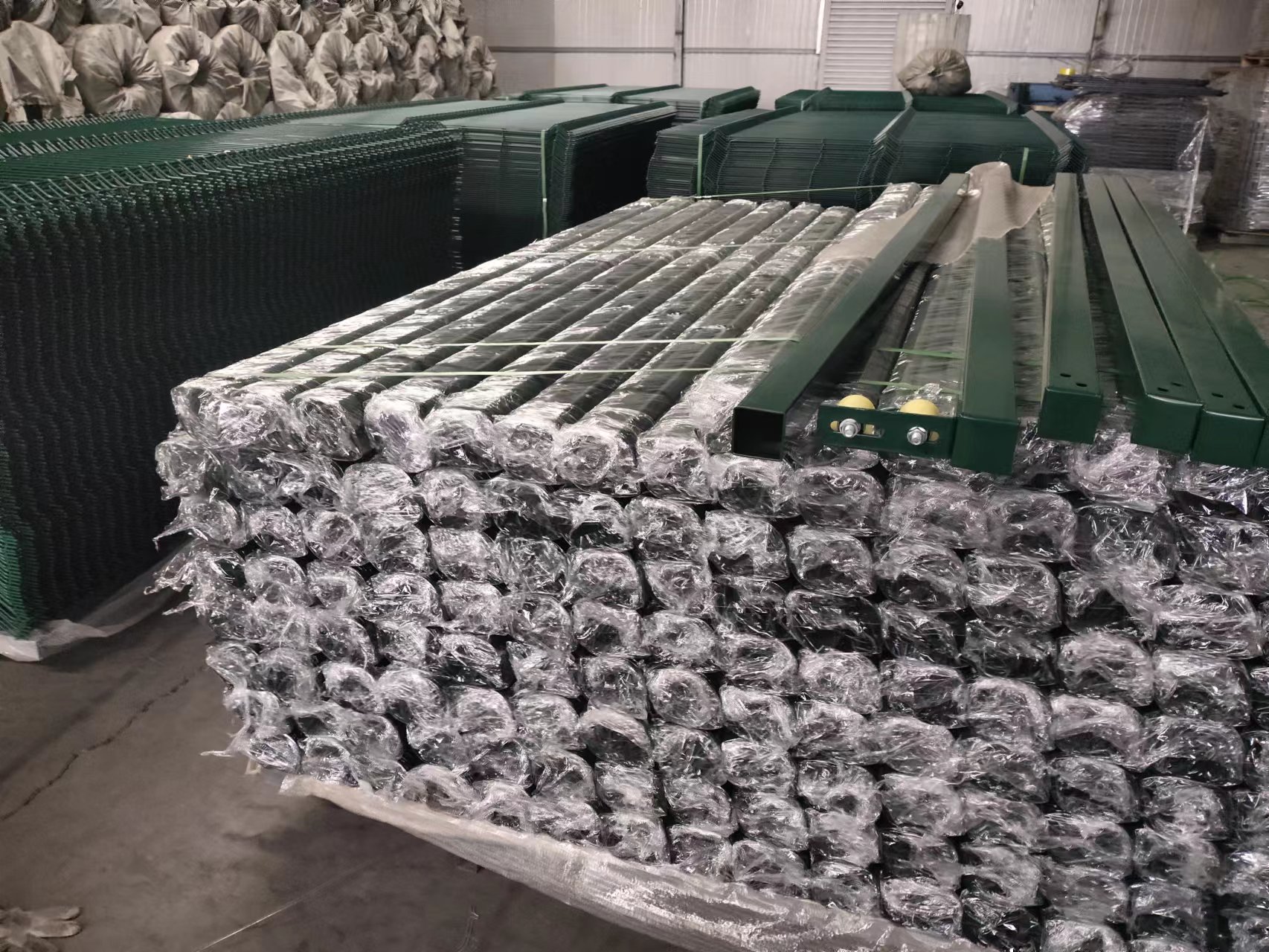

Packing&shipping

It has rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels;
It has 4 metal corners to keep the pallet more strong;
It has metal plate under the plastic bandage to reduce the pressure of fence panels;
It has wooden plate at the top of fence panel which can protect the fence panels avoid being crushed by other pallets.

200*50mm 3D Curved Wire Mesh Fence Panels For Road And Transit , Longlife

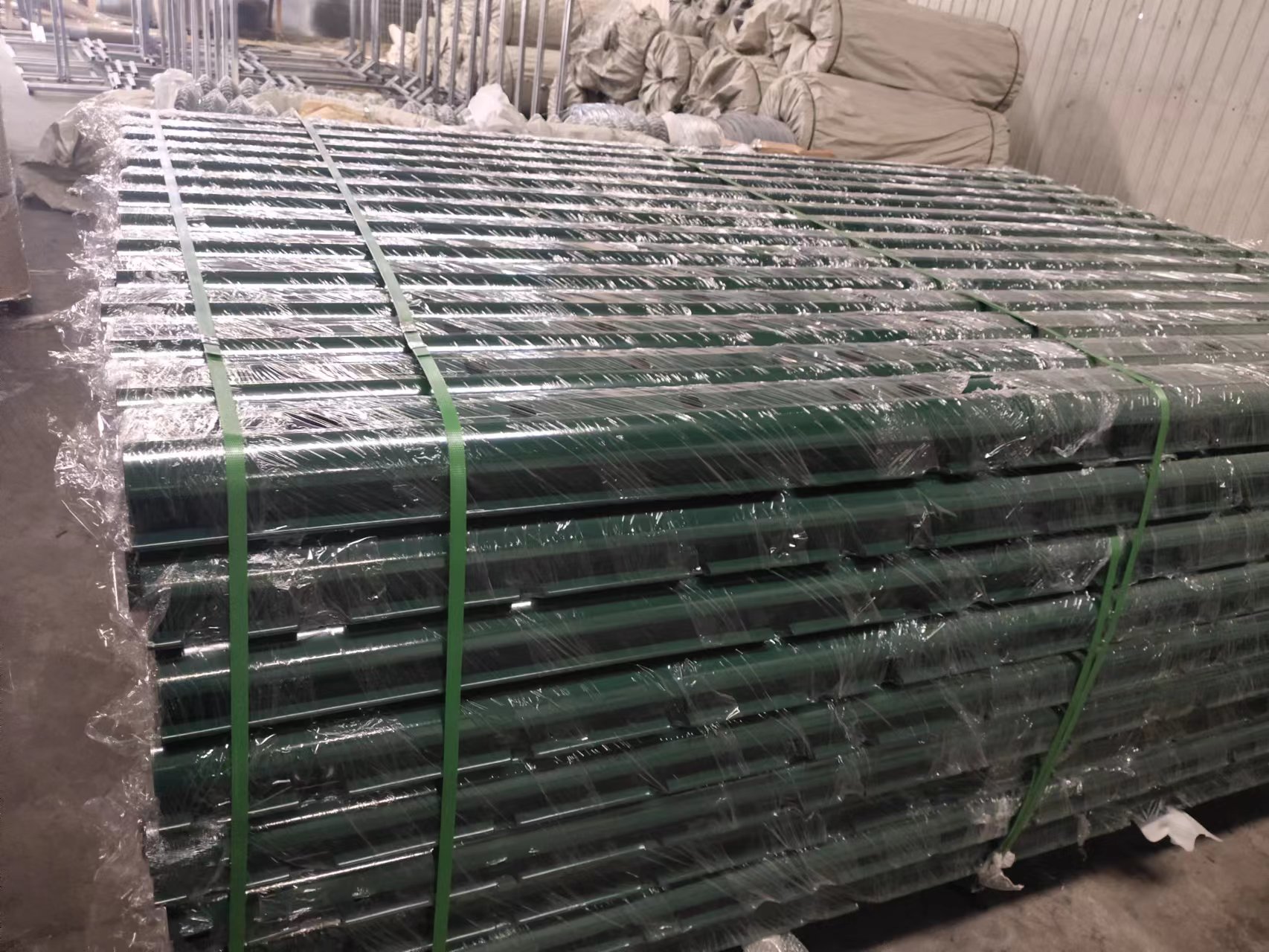

pvc coated peach post for curved mesh panels

200*50mm 3D Curved Wire Mesh Fence Panels For Road And Transit , Longlife

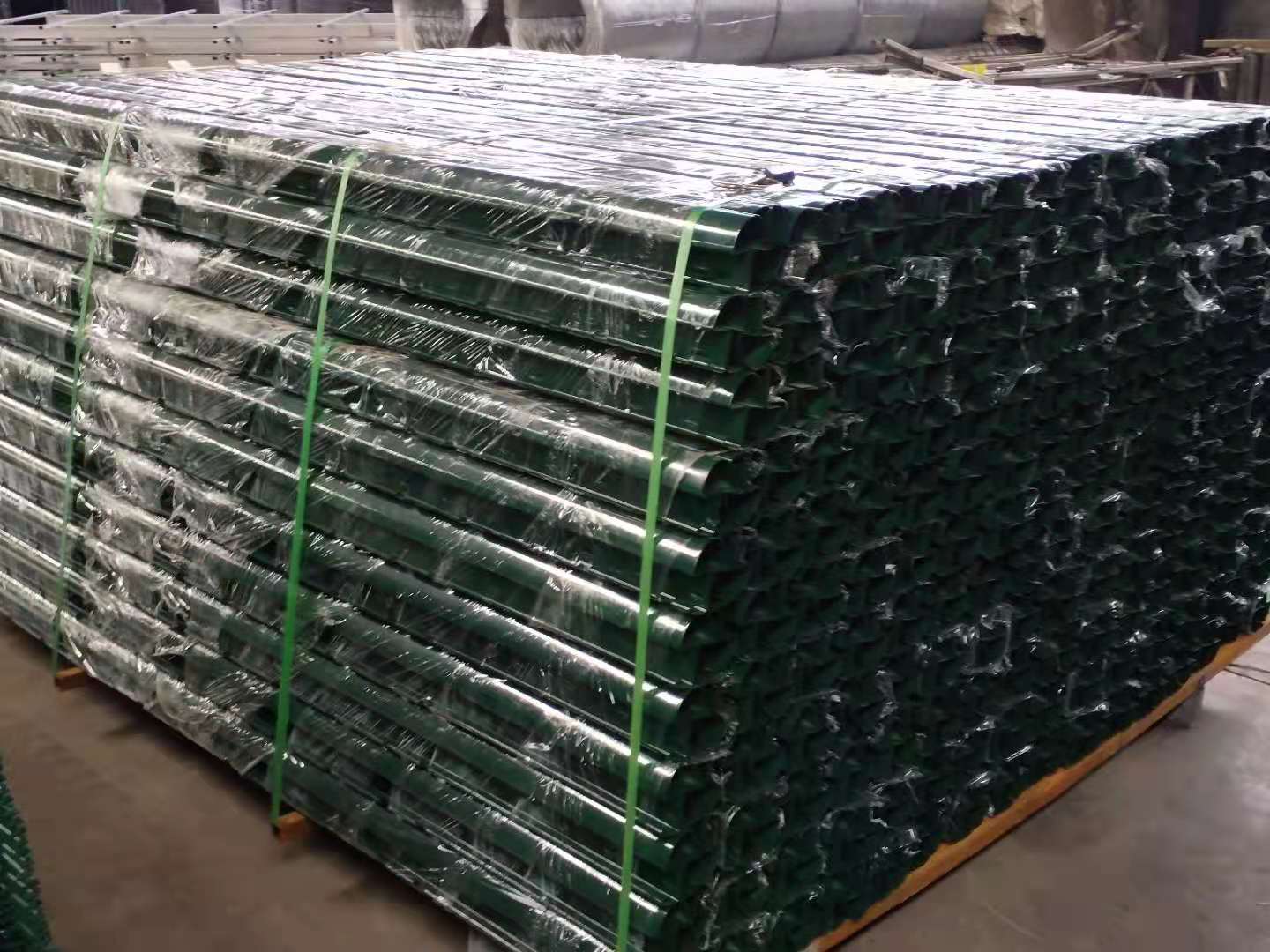

hot dipped galvanized peach post for curved mesh panels

200*50mm 3D Curved Wire Mesh Fence Panels For Road And Transit , Longlife

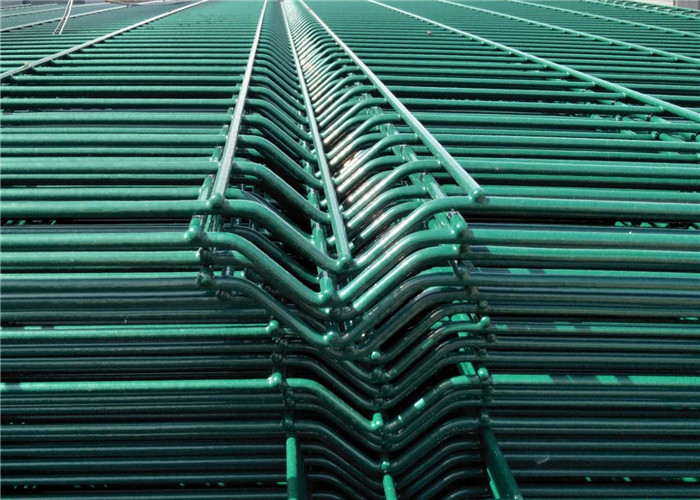

green colored curved mesh fence panel
200*50mm 3D Curved Wire Mesh Fence Panels For Road And Transit , Longlife
peach post for curved mesh fence panel
200*50mm 3D Curved Wire Mesh Fence Panels For Road And Transit , Longlife

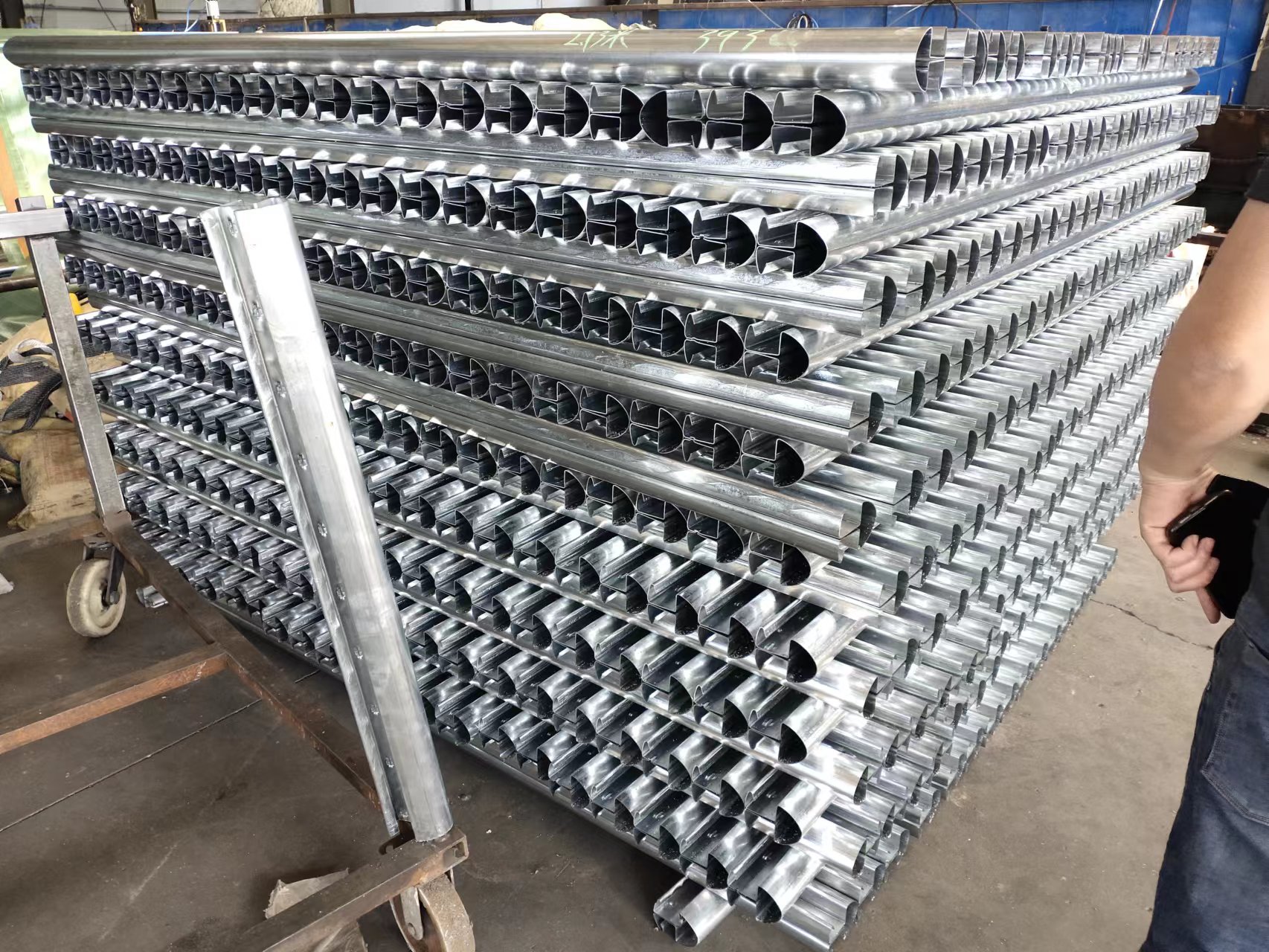

curved mesh fence post
