Aluminium Small Hole Expanded Metal Mesh Roll /Panel
Introduce of Aluminum Expanded Metal Mesh:
Expanded Galvanized Carbon Steel Sheet for Grain Screening. Specially designed diamond opening expanded metal mesh for grains. Fine mesh and coarse mesh types are both supplied.
The grain screen is about 515 LF & an additional of 2 light screen gates 16 LF each. The sheet panel size is 8' w X 10' high & fine grain metal mesh is attached to coarse grain metal mesh behind.
Material:low carbon steel plate,Aluminum plate,copper plate,stainless steel plate,aluminum-magnesium alloy sheet,steel plate,nickel sheet etc
Processing:perforating and stamping the metal sheets
Surface treatment: PVC coated,hot dipped galvanized,electro galvanized,plastic coated
a. Product description: Cladding decorative aluminum expanded metal mesh panels
b. Color: Silver or customized
c. Material: AA1100H24
d. Thickness: 0.5-10mm
e. Strand: 1mm-50mm
f: LWD: 300mm
g. SWD: 120mm
h. Weight: 6.775kg/m
i. Surface treatment: PVDF coating
j. Coated side: Double side
Specification of Aluminum Expanded Metal Mesh:
| Sheet Thickness | Opening in Width
mm | Opening in Length
mm | Stem | Mesh Width
mm | Mesh Length
mm | Weight
kg/m2 |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
Long way of mesh:12.5-200mm
Short way of mesh:5-80mm
Thickness:0.5-8mm
Strand width:0.5-10m
Length:0.5m-30m or as customer's choice
Width:0.5m-2.5m
SHEARING - Cutting expanded metal to size to produce various sheet sizes. May be “bond” or “random” sheared.
Expanded metal is often referred to as diamond punched, stretched metal or security mesh. Due to its method of manufacture, expanded metal is one of the most economical steel mesh, or grating material, on the market.
The strength of expanded metal runs along the long dimension, not the short dimension. Sheets of expanded generally come in 4’ short dimension and 8’ long dimension. The long dimension is approximately double that of the short dimension. Expanded metal open area percentage typically falls between 60% to 80%.
This product is ideal for security, decoration or traction applications.
Coarse Grain Mesh Made of Expanded Metal V-MESH:
Pattern Size - 3" SWD X 8" LWD
Opening -2 5/16" SWD X 5 3/4" LWD
Strand Width - .562"/.575"
Strand Thickness - .375"/.380"
Overall Thickness - 1 3/16"
% Open Area - 55%
The Expanded Galvanized Steel Sheet sizes - Maximum LWD 36 1/8", Maximum SWD 144"

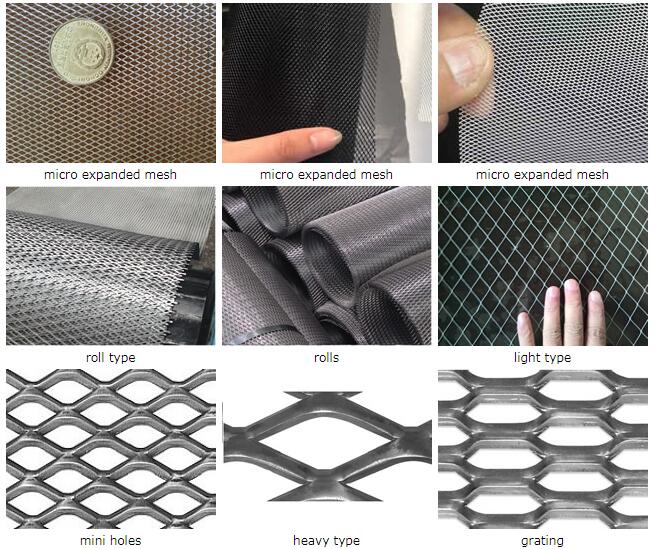

Pattern of Expanded Metal Sheets:
