2V 3V 3D PVC Powder Coated Curved Metal Fence Welded Wire Mesh Fence 50*200mm

Name: 2V 3V 3D PVC Powder Coated Curved Metal Fence Welded Wire Mesh Fence 50200mm
Brand: XMESH
Price: 1 USD

2V 3V 3D PVC Powder Coated Curved Metal Fence Welded Wire Mesh Fence 50*200mm Manufactures

Brand Name : XMESH

Model Number : QJ-515

Certification : SGS

Place of Origin : Hebei, China

MOQ : 200pcs

Payment Terms : 30%TT in advance, Balance before loading

Supply Ability : 10000 pcs one month

Delivery Time : 15-25days

Packaging Details : loose packed or with steel pallets

Material : Galvanized steel core wire

Wire diameter : 4.0mm, 4.5mm, 5.0mm

Mesh : 50x150mm, 50x200mm

Finish : Powder coated

Color : Green, black, white, orange

Size : 2.5 x 1.8 m, 2.5 x 2.1 m, 3.0 x 2.0 m

Type : Fencing,Trellis & Gates,Welded Mesh

Feature : Easily Assembled,Eco Friendly,Rodent Proof

Frame material : Metal

Pressure treated wood type : Heat Treated

Surface treatment : Galvanized+PVC Coated

Application : Fence Mesh,Garden,Residential

Product name : 2D Double Wire Fence 868 Mesh Fence Panels Manufacture,Powder coating or hot dipped galvanized wire mesh fence

Mesh size : 50x100mm,75x150mm,200mm*50mm / 150mm*50mm/100mm*50mm

Usage : Protection,Garden Decoration,building,Used,Garden Fence/highway/airport

Width : 1500mm ~ 3000mm

Length : 2m/2.5m or according to your request

Contact Now

2V 3V 3D PVC Coated Curved Welded Wire Mesh Fence 50*200mm
Product descriptions
3D Curved Welded Wire Fence is a combination of wires in the horizontal and vertical direction welded at their junctions to provide a rigid wire mesh fence. A number of differing designs are manufactured from 3mm to 8mm wire at varying spacings for economy or strength. Styles with minimum horizontal bars widely spaced are used to restrict or deny climbing. Most curvy welded fence is supplied in a "hot galvanised" finish, due to their exposure to the elements and particularly salt laden atmospheres. However, for a more pleasing effect they can be powder coated in a range of popular colours.

Material:
Mesh Size(common):
Wire Diameter: 4/5mm, 5/6mm, 5/5mm
Mesh opening: 50*100mm, 50*200mm, 55*100mm, 55*200mm, 50*150mm
Post Size: (three kinds)
(1)Circular Pipe Post:
Diameter: 48mm, 60mm, 75mm, etc.
Thickness: 1.0mm, 1.5mm, 2.0mm, etc.
(2)Square Pipe Post:
Diameter: 50mm, 60mm, 80mm, etc
Thickness: 1.0mm; 1.5mm; 2.0mm, etc
(3)Peach-style Pipe Post
Height & Width of the Fence(common): 1.8mx3.0m; 2.0mx3.0m
Surface treatment: Hot galvanized; Electro galvanized; PE coated and PVC coated
Colors, 6005 dark green, grey, white, yellow, lawn green and red. Same colors are used for panels and posts commonly, while different colors can also be used to form a contrast.

Excellent corrosion resistance, anti-aging and anti-aging property.
Sunshine resistance and weather-proof.
With rectangular mesh and horizontal reinforcement guarantee a very high level of rigidity.
Have four horizontal bending rebar therefore it will strengthen the fence network.
Not only has a beautiful outlook but also has a durable structure.
Can withstand outdoor exposure.
Easy and quick to transport and install.
Terrain adaptability, the adjacent column with undulating ground can be adjusted upwards or downwards.
Bright, reflective colors stand out in day or night
Easy transportation, save time and labor cost.

3D Curved Welded Wire Fence Applications:

Mainly used in highway and railway bridge on both sides of the protection zone.
Airports, ports, terminals security.
Municipal building in the park, lawn, zoo, pool lake, roads, and residential isolation.
Guest Houses, hotels, supermarkets and entertainment protective.

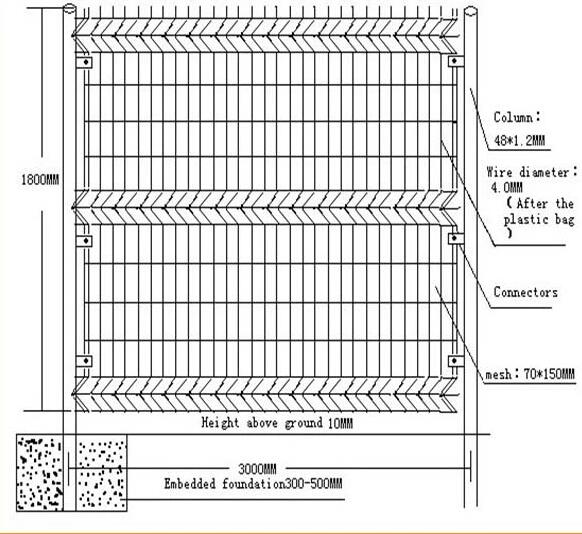

Specifications of 3D Curved Welded Wire Fence

Height Above Ground (m)	Panel Size (mm)	Mesh Size (mm)	Numbers of Beams	Post Diameter (mm)
1.2	1230x2500	50x100/50x200	2	50x70
1.8	1830x2500	50x100/50x200	3	50x70
2.0	2030x2500	50x100/50x200	4	70x100
We can also manufacture the weld mesh fencing as per your dimension of the specification

2V 3V 3D PVC Powder Coated Curved Metal Fence Welded Wire Mesh Fence 50*200mm

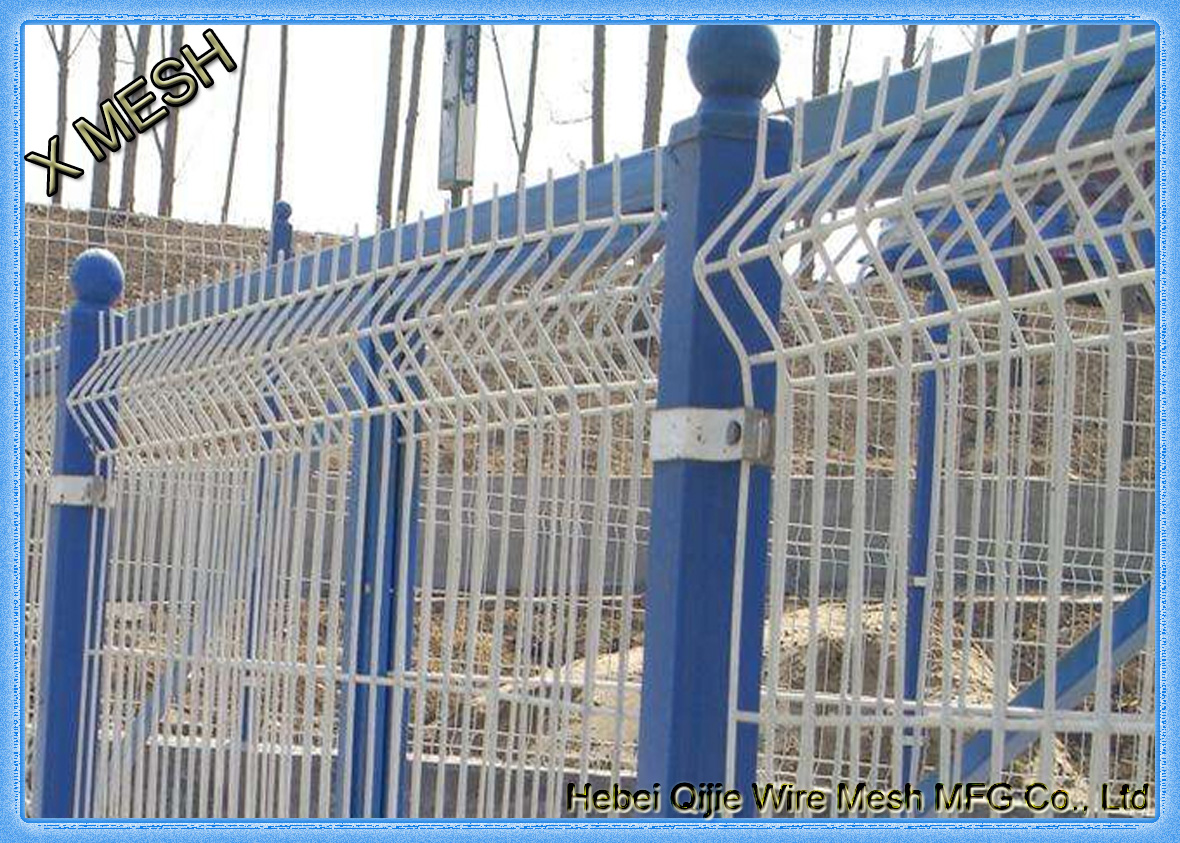

Post install of 3d curved mesh fence:

Peach post	square post
Rectangular post	Round Post

Features of 3D security fence

High strength.
Corrosion and rust resistance.
Weather resistance.
Various colors for choice.
Durable and long service life.
Different installation types.
Can suit different installation environments.
Prevent intruders from entering the unwanted areas.

Range of application:

Enclosing:
Road and transit(highway, railway, road, city transit)
Science & Industry Zone(factory, industry zone, sightseeing zone, new pattern farm)
Private grounds(courtyard, villadom)
Public grounds(park, zoo, train or bus station, lawn)
Commercial grounds(corporation, hotel, supermarket)

3D Curved Welded Wire Fence-C0001	3D Curved Welded Wire Fence-C0002
3D Curved Welded Wire Fence-C0003	3D Curved Welded Wire Fence-C0004

2V 3V 3D PVC Powder Coated Curved Metal Fence Welded Wire Mesh Fence 50*200mm
Perimeter Coated Welded Wire Fence Steel-P0005

Perimeter Coated Welded Wire Fence Steel-P0006
