Plain Weave Stainless Steel Galvanized Metal Vibrating Screen Mesh
Heavy Duty Perforated Vibrating Screen Mesh with Hook for Stone
Crimped wire mesh also called square wire mesh is cloth made from wire strands. The wires that make up wire mesh run parallel to the width of the roll (cross wires) and parallel to the length (line wires). The cross and line wires are interwoven. That is, the wires cross over and under each other. Wire Mesh can be woven in a number of different styles depending on the material type, wire diameter, and opening size. Crimped wire mesh is available in rolls, sheets or panels, and cut-to-size.
Screen mesh is widely used in industry, agruculture, crusher, building, house fencing and so on.
1. Material:
High carbon steel wire, low carbon steel wire, galvanized wire, stainless steel wire and other metal wires.
2. Feature:
It has fine features of neat & precise, sturdy structure, durable& strongly rust-resistant and fine anti-corrosiveness.
3. Packaging:
Wrapped with moister-proof paper, Then covered with Hessian cloth
4. Application:
Screening in mine, coal factory, construction and other industries.used as window
screening, safety guards in machinery enclosures, also used in filtering liquid and gas, sieving grain.
Please contact us as soon as possible if you are interested in our products. We'll try our best to supply the best service to you!
Specification:
| No | Steel Grade | Chemical Composition |
| C | Si | Mn |
| 1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 |
| 2 | 50 | 0.47-0.55 |
| 3 | 55 | 0.52-0.60 |
| 4 | 60 | 0.57-0.65 |
| 5 | 65 | 0.62-0.70 |
| 6 | 70 | 0.67-0.75 |
| 7 | 65Mn | 0.62-0.70 | 0.90-1.20 |
| 8 | 72A | 0.70-0.75 | 0.15-0.35 | 0.30-0.60 |
| Mesh/inch | Wire Diameter | Aperture | Open Area | Weight(LB)/100square foot |
| Inch | MM | Inch | MM |
| 2x2 | 0.063 | 1.6 | 0.437 | 11.1 | 76.4 | 51.2 |
| 3x3 | 0.054 | 1.37 | 0.279 | 7.09 | 70.1 | 56.7 |
| 4x4 | 0.063 | 1.6 | 0.187 | 4.75 | 56 | 104.8 |
| 5x5 | 0.041 | 1.04 | 0.159 | 4.04 | 63.2 | 54.9 |
| 6x6 | 0.035 | 0.89 | 0.132 | 3.35 | 62.7 | 48.1 |
| 8x8 | 0.028 | 0.71 | 0.097 | 2.46 | 60.2 | 41.1 |
| 10x10 | 0.02 | 0.51 | 0.08 | 2.03 | 64 | 26.1 |
| 12x12 | 0.023 | 0.584 | 0.06 | 1.52 | 51.8 | 42.2 |
| 14x14 | 0.023 | 0.584 | 0.048 | 1.22 | 45.2 | 49.8 |
| 16x16 | 0.018 | 0.457 | 0.0445 | 1.13 | 50.7 | 34.5 |
| 18x18 | 0.017 | 0.432 | 0.0386 | 0.98 | 48.3 | 34.8 |
| 20x20 | 0.02 | 0.058 | 0.03 | 0.76 | 36 | 55.2 |
| 24x24 | 0.014 | 0.356 | 0.0277 | 0.7 | 44.2 | 31.8 |
| 30x30 | 0.013 | 0.33 | 0.0203 | 0.52 | 37.1 | 34.8 |
| 35x35 | 0.011 | 0.279 | 0.0176 | 0.45 | 37.9 | 29 |
| 40x40 | 0.1 | 0.254 | 0.015 | 0.38 | 36 | 27.6 |
| 50x50 | 0.009 | 0.229 | 0.011 | 0.28 | 30.3 | 28.4 |
| 60x60 | 0.007 | 0.178 | 0.0097 | 0.25 | 33.9 | 20.4 |
| 70x70 | 0.0065 | 0.165 | 0.0078 | 0.2 | 29.8 | 20.8 |
| 80x80 | 0.0065 | 0.165 | 0.006 | 0.15 | 23 | 23.2 |
| 90x90 | 0.005 | 0.127 | 0.0061 | 0.16 | 30.1 | 15.8 |
| 100x100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 30.3 | 14.2 |
| 110x110 | 0.004 | 0.1016 | 0.0051 | 0.1295 | 30.7 | 12.4 |
Carbon Steel Parameter:
Photo:

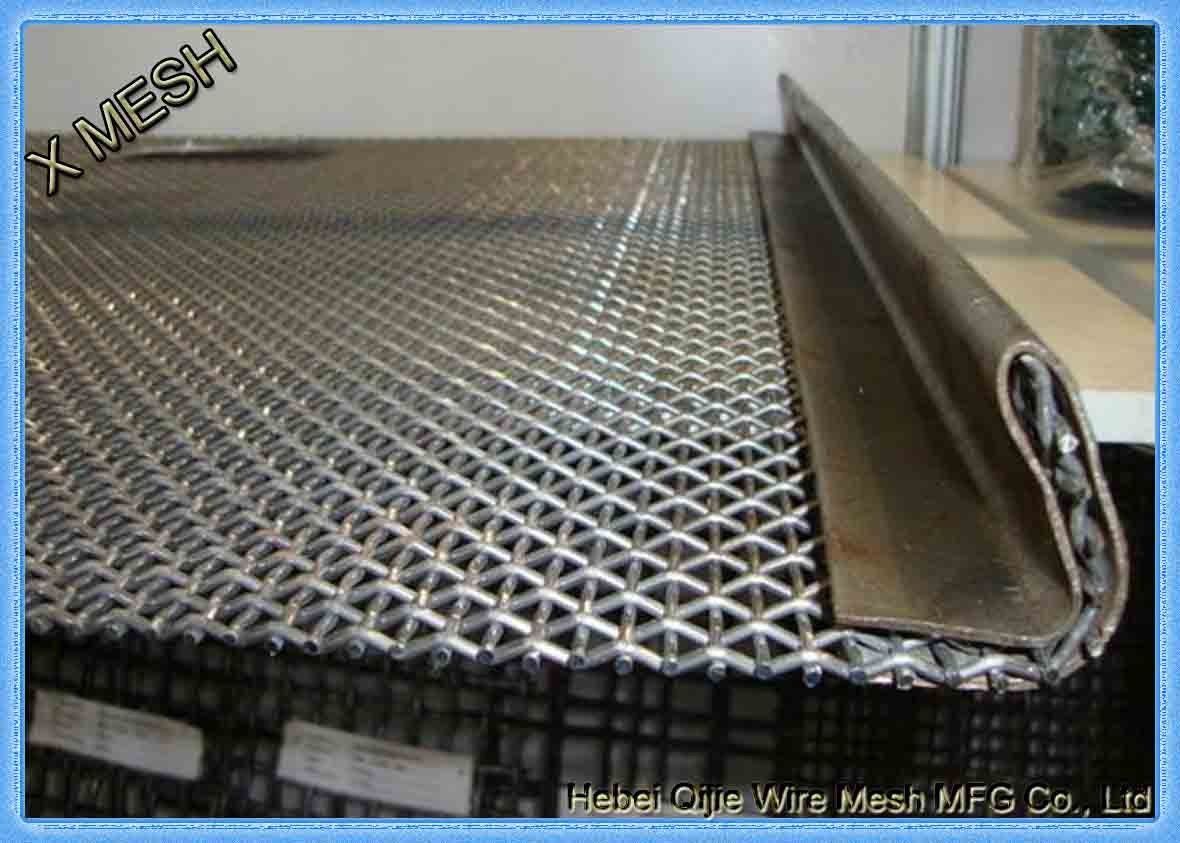

vibrating screen mesh

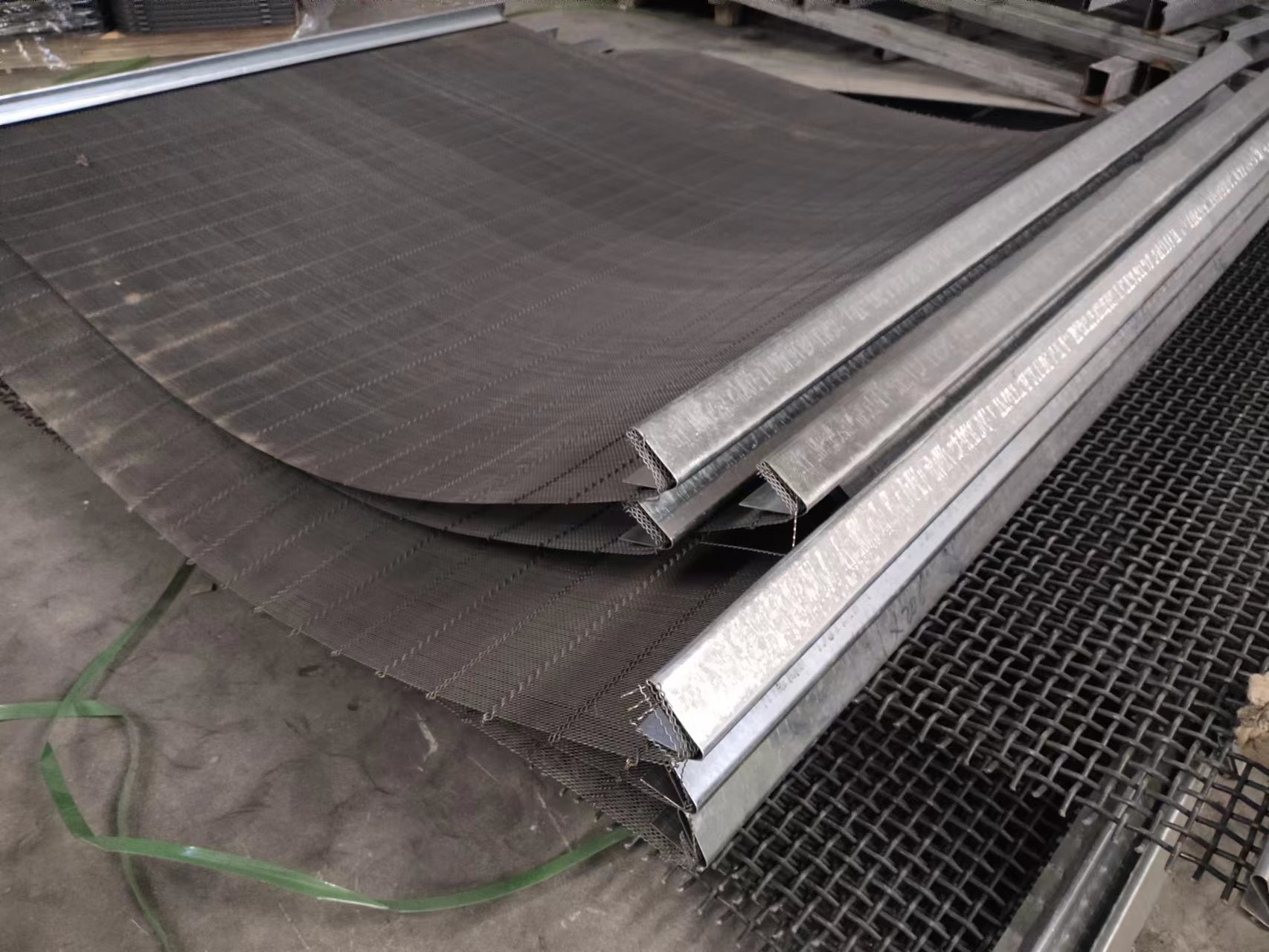

vibrating screen mesh

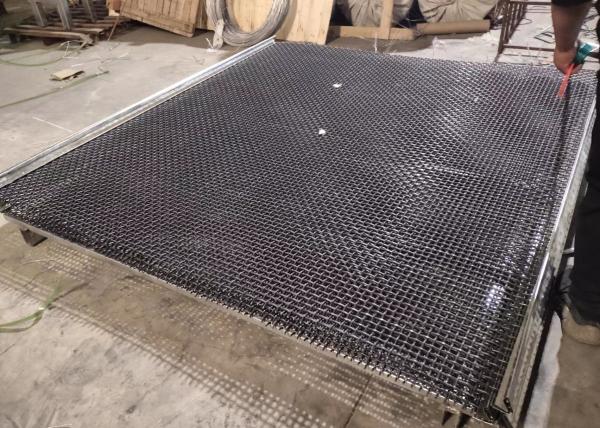

anti-clog vibrating screen mesh

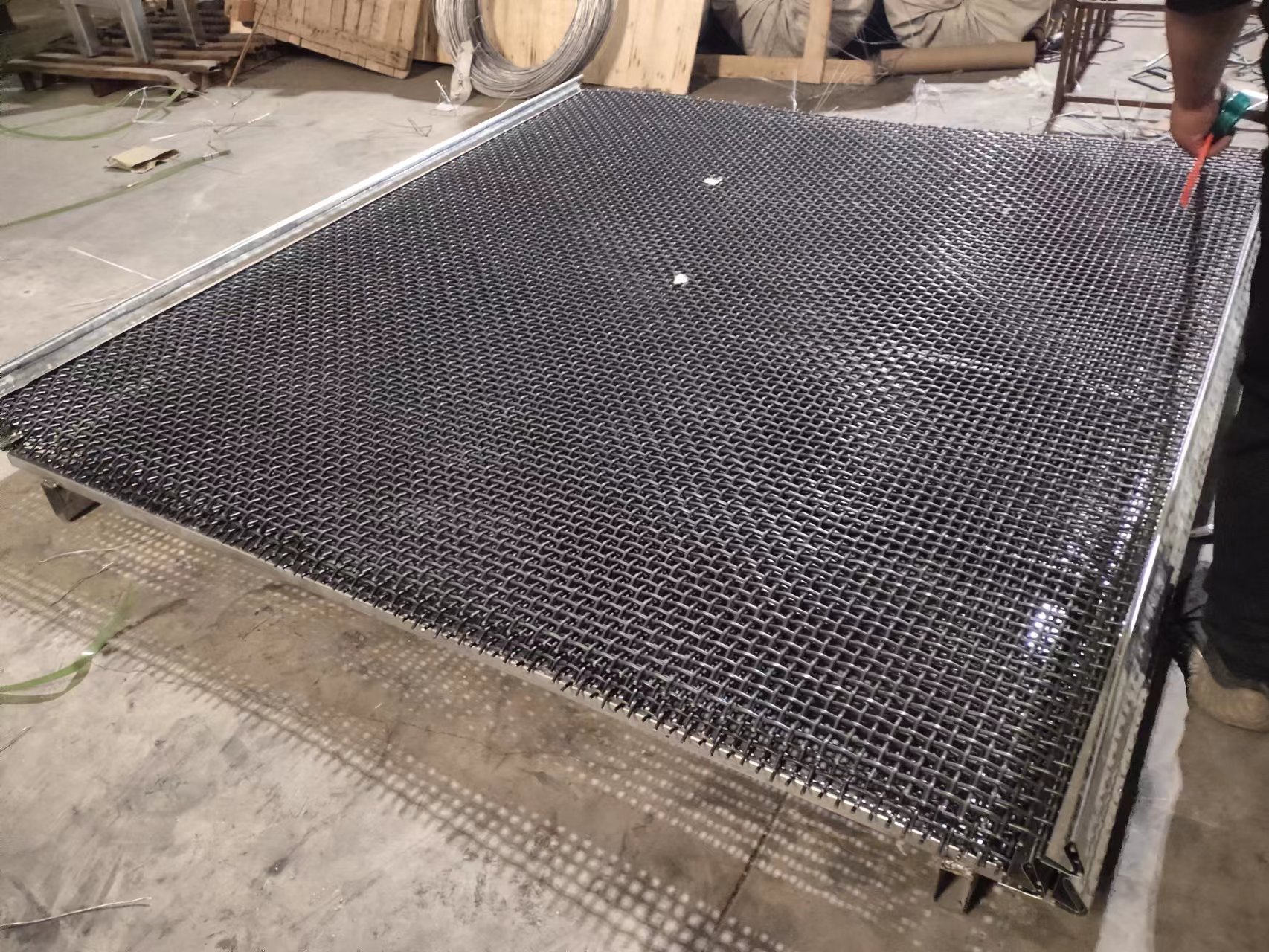

anti-clog vibrating screen mesh
