Bto-22 Cbt-60 Cbt-65 Concertina Razor Coil Galvanized

Name: Bto22 Cbt60 Cbt65 Concertina Razor Coil Galvanized
Brand: Qijie
Price: 1 USD

Bto-22 Cbt-60 Cbt-65 Concertina Razor Coil Galvanized Manufactures

Brand Name : Qijie

Model Number : QJ-R001

Certification : ISO9001

Place of Origin : China

MOQ : 100 rolls

Price : discuss

Payment Terms : 30%TT in advance, Balance before loading

Supply Ability : 100 tons per week

Delivery Time : 15-20 days

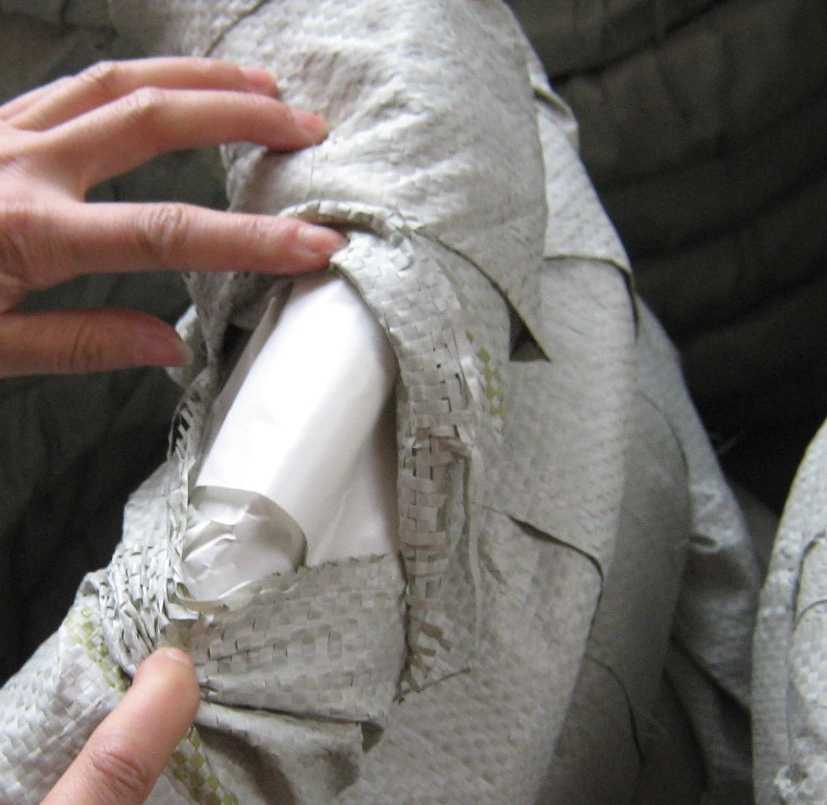

Packaging Details : Woven bag outside,carton box etc

Barb Length : 10mm

Color : Silver

Barbed Distance : 3"

Coil Outside Diameter : 960mm

Specification : 7-16m

name : bto-22 cbt-60 cbt-65 concertina razor coil

Contact Now

Product Description

Galvanized PVC Coated Stainless Steel Bto-22 Cbt-60 Cbt-65 Concertina Razor Barbed Wire

Razor Barbed Wire, Concertina Barbed Wire, Blade Wire, Razor Barbed Tape

We are capable of produce traditional razor wire, razor wire in straight lines, razor wire in concertina single coils or crossed coils. A variety of blade type and sizes are for the choice of our customers. Standard materials for razor wire are either Hot-dipped galvanized or stainless steel.
Materials: Hot dipped galvanized, electro galvanized, stainless steel, etc
Assortment: razor barbed wire can be supplied in straight line razor wire, single coils razor wire or crossed concertina razor coils
Concertina razor wire, razor barbed wire , mainly used for safety scope.

Bto-22 Cbt-60 Cbt-65 Concertina Razor Coil Galvanized

Bto-22 Cbt-60 Cbt-65 Concertina Razor Coil Galvanized

Specifications:

Reference number	Thickness	Wire Dia	Barb length	Barb width	Barb spacing
BTO-10	0.5±0.05	2.5±0.1	10±1	13±1	26±1
BTO-12	0.5±0.05	2.5±0.1	12±1	15±1	26±1
BTO-18	0.5±0.05	2.5±0.1	18±1	15±1	33±1
BTO-22	0.5±0.05	2.5±0.1	22±1	15±1	34±1
BTO-28	0.5±0.05	2.5	28	15	45±1
BTO-30	0.5±0.05	2.5	30	18	45±1
CBT-60	0.5±0.05	2.5±0.1	60±2	32±1	100±2
CBT-65	0.5±0.05	2.5±0.1	65±2	21±1	100±2

Specification of concertina razor wire
Outside diameter	No.of loops	Standard length per coil	Type	Notes
450mm	33	7-8M	CBT-60.65	Single coil
500mm	56	12-13m	CBT-60.65	Single coil
700mm	56	13-14m	CBT-60.65	Single coil
960mm	56	14-15m	CBT-60.65	Single coil
450mm	56	8-9m(3 clips)	CBT-10.10.18.22.28.30	Cross type
500mm	56	9-10m(3 clips)	CBT-10.10.18.22.28.30	Cross type
600mm	56	10-11m(3 clips)	CBT-10.10.18.22.28.30	Cross type
600mm	56	8-10m(5clips)	CBT-10.10.18.22.28.30	Cross type
700mm	56	10-12m(5 clips)	CBT-10.10.18.22.28.30	Cross type
800mm	56	11-13m(5 clips)	CBT-10.10.18.22.28.30	Cross type
900mm	56	12-14m(5 clips)	CBT-10.10.18.22.28.30	Cross type
960mm	56	13-15m(5clips)	CBT-10.10.18.22.28.30	Cross type
980mm	56	14-16m(5 clips)	CBT-10.10.18.22.28.30	Cross type
