65mn High Tensile Strength 6mm Woven Vibrating Screen Mesh Wear And Abrasion Resistance

65mn High Tensile Strength Woven Vibrating Screen Mesh - Wear And Abrasion Resistance

Manganese Steel Mining Vibrating Screen has the wires pre-undulated with strict steps in order to obtain regularity in the mesh.
Due to its high percentage of screening surface, they are used to classify, with great precision and a high performance, materials that do not have a tendency to block. The high resistance to traction of the steel used allows obtaining a great resistance to vibration and a long service time.
Woven vibrating screen mesh. it is the most popular and widely used type of vibrating screen mesh. It contains high tensile spring steel vibrating screen mesh, manganese steel vibrating screen mesh and stainless steel vibrating screen mesh.
Woven vibrating screen mesh has different weaving method and various edge types.

• The Vibrating Screen Mesh is manufactured to ensure optimum finish, high strength, and low maintenance cost.
• They can be used on all types of high abrasive products, with no clogging and plugging.
• Screens are woven accurately to the mesh size with appropriate wire or wire rod to meet specific requirements

Specifications

• · Screen Mesh Type: Woven wire mesh, Polyurethane sieve mesh, Stainless steel wire mesh.

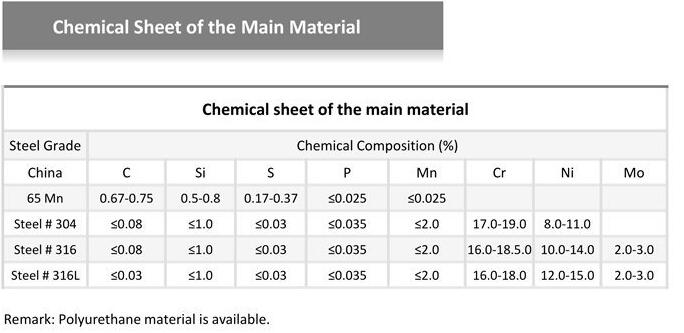

• · Material: 65 Manganese Steel, Polyurethane, Stainless Steel #304 #316
• · Wire diameter: 0.1mm - 12mm.
• · Opening size: 0.11mm - 100mm.
• · Weaving type: Double crimped, intermediate crimped, flat top crimped, lock crimped.
• · Mesh type: Square, Rectangle, Diamond, Corrugated, Triangle
• · Surface treatment: Brush rust resistant oil.
• · Edge preparation: Plain, bent, reinforced shroud.
• · Regular Curved Edge: Hooking (wire dia.>4.5mm), Wrapping (wire dia. ≤6mm)
• · Hook type: C or U hook for 30° - 180°

Features:

• High tensile strength and toughness. All the screen is made by the high tensile steel, it can supply the high tensile strength and toughness.
• Wear and abrasion resistance. All the materials are wear and abrasion resistance.
• High temperature resistance - spring steel vibrating screen mesh and manganese vibrating screen mesh.
• Long service life. The high quality raw material and strict production can improve the service life of the screen.
• Customed. All types of vibrating screens can be customed according to the customers' requirements.
• Reduce the blinding and plugging - Piano wire screen and self cleaning screen mesh.
• Safe and high efficiency. Especially for the trommel screen mesh.

Application:
The Manganese Steel Mining Vibrating Screen can be used in the following fields as:

• * Safety grids (e.g. car industry, mechanical engineering, building industry)
• * Filling elements for gates and fences in buildings and gardens
• * Booth construction
• * Plant breeding
• * Pigeon barriers
• * Noise protection

Specification:

Photo:

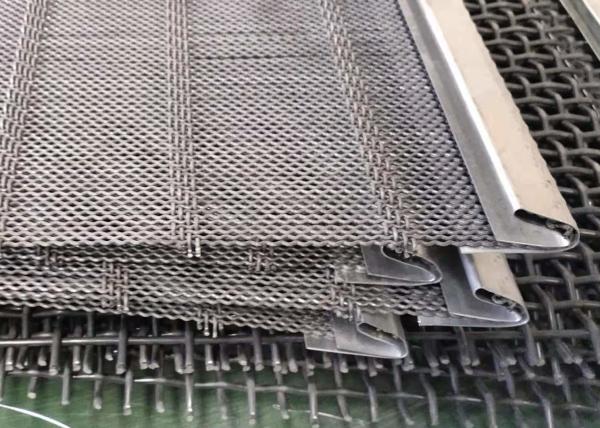

abrasion resistance woven vibrating screen mesh

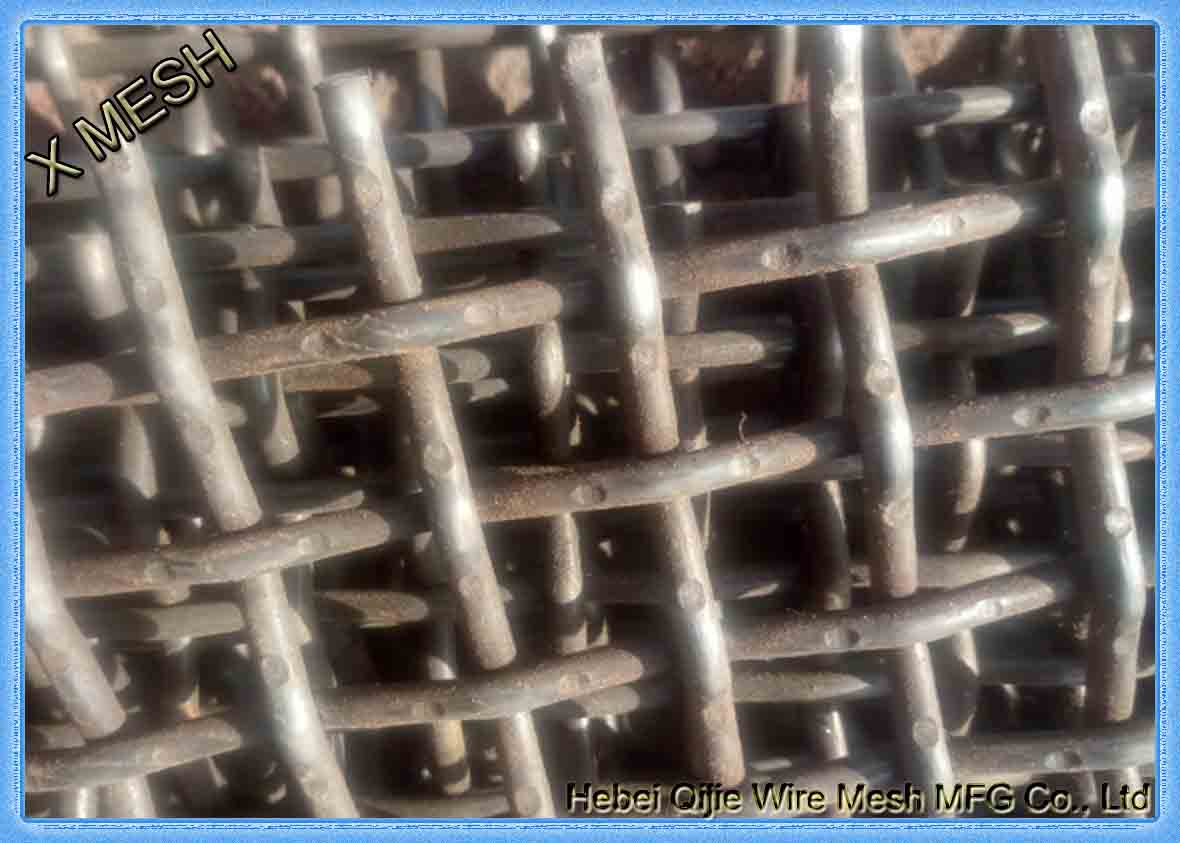

65mn woven vibrating screen mesh

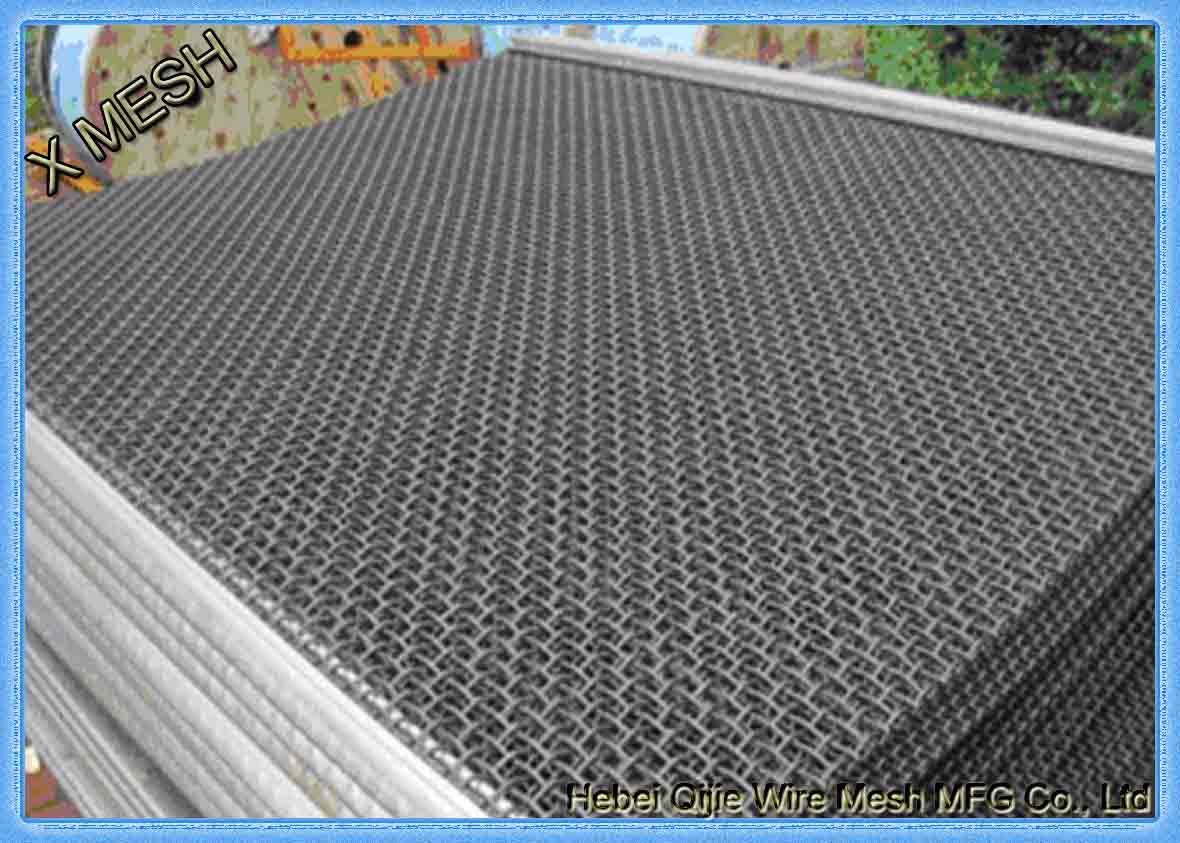

high tensile strength vibrating screen mesh
